Tools and accessories sized to your project needs

[ Business terms for custom designs ] [ Safety ] [ Disclaimer ] [ Contact ] [ Home ]

LatheCity's Adapter Paradise - some of the gizmos we made -

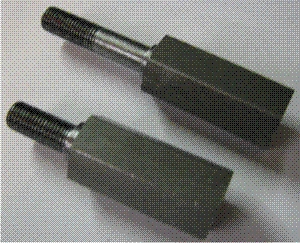

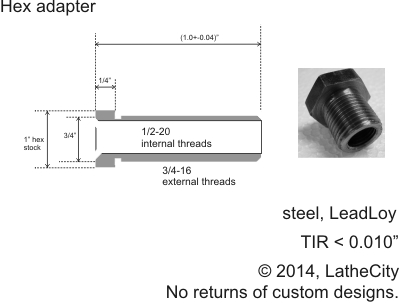

Hex adapters with internal & external threads

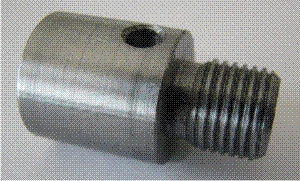

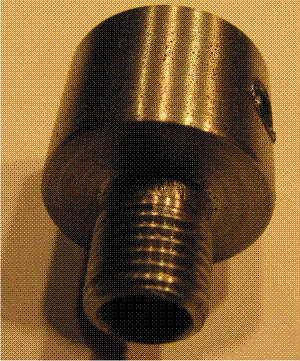

Adapter for a grinder

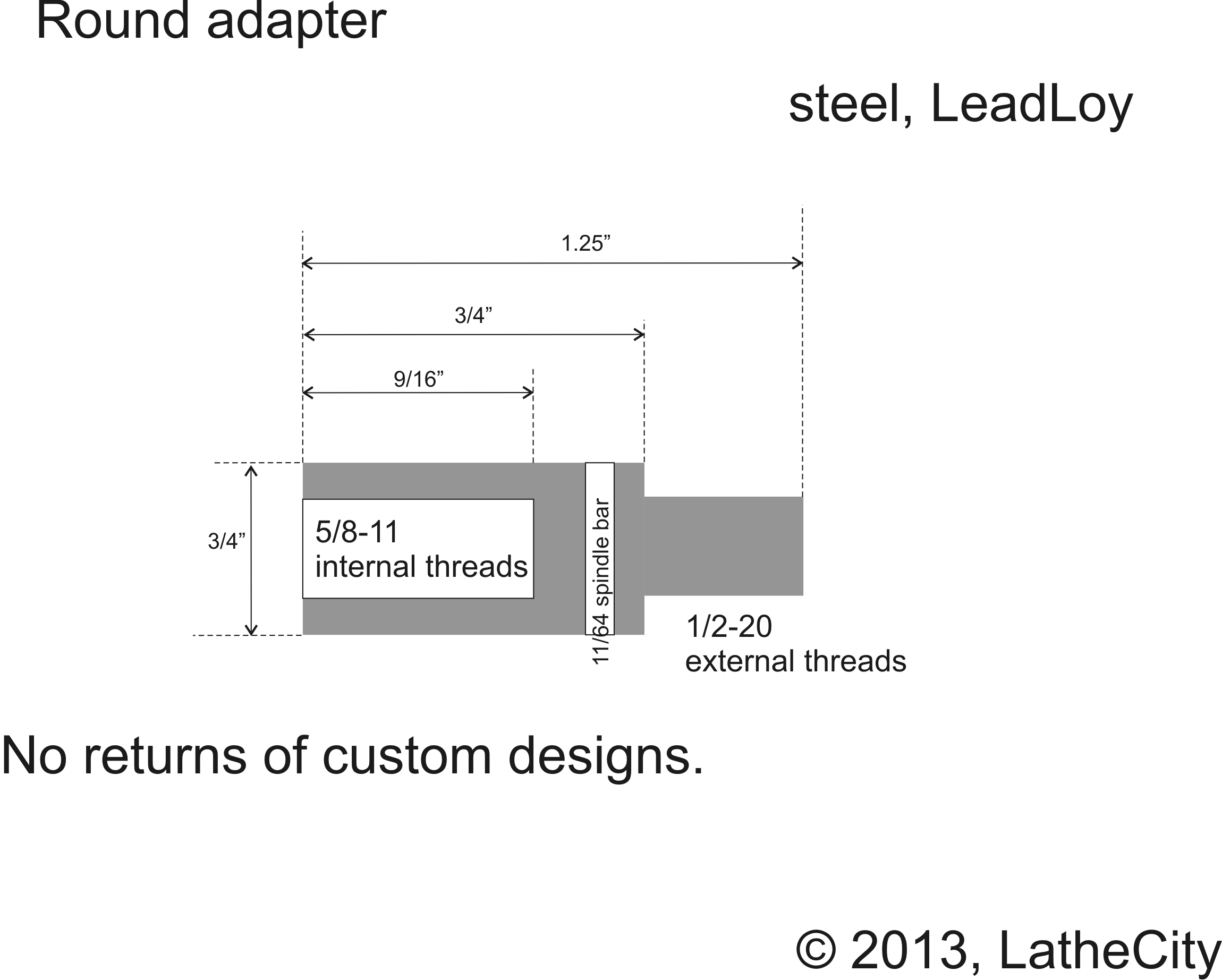

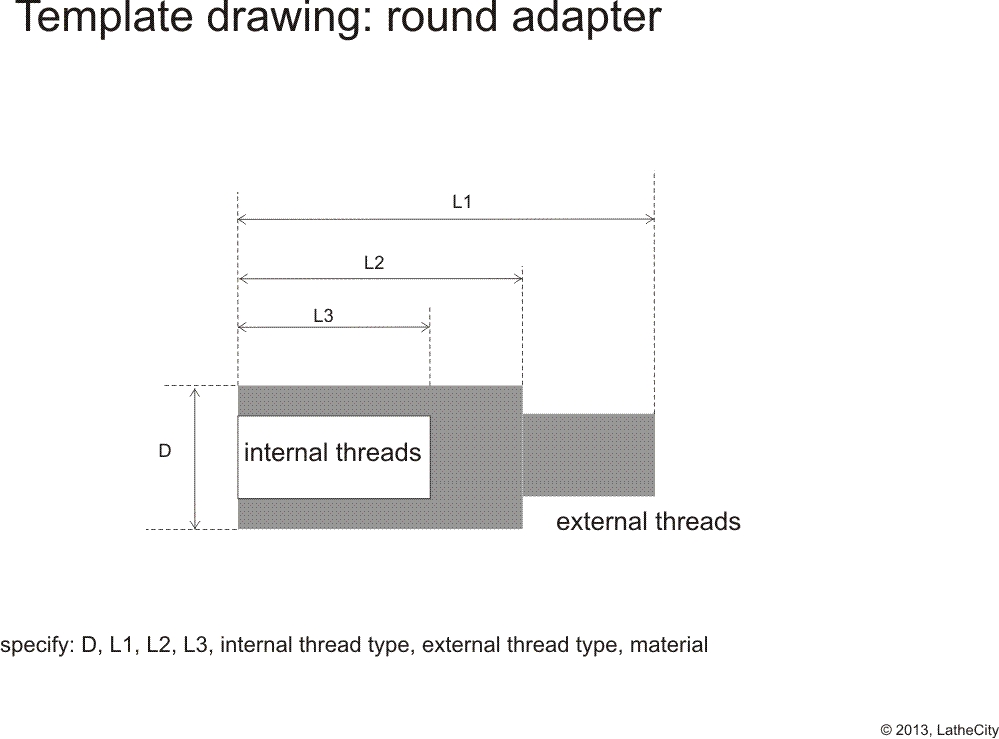

Template drawing [ Round adapter ]


Unusual threads

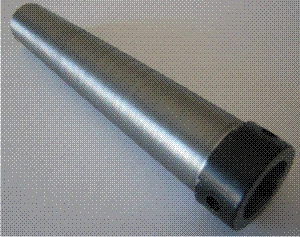

Brown & Sharp taper to Morse Arbor

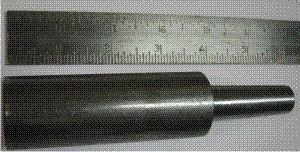

MT2 long

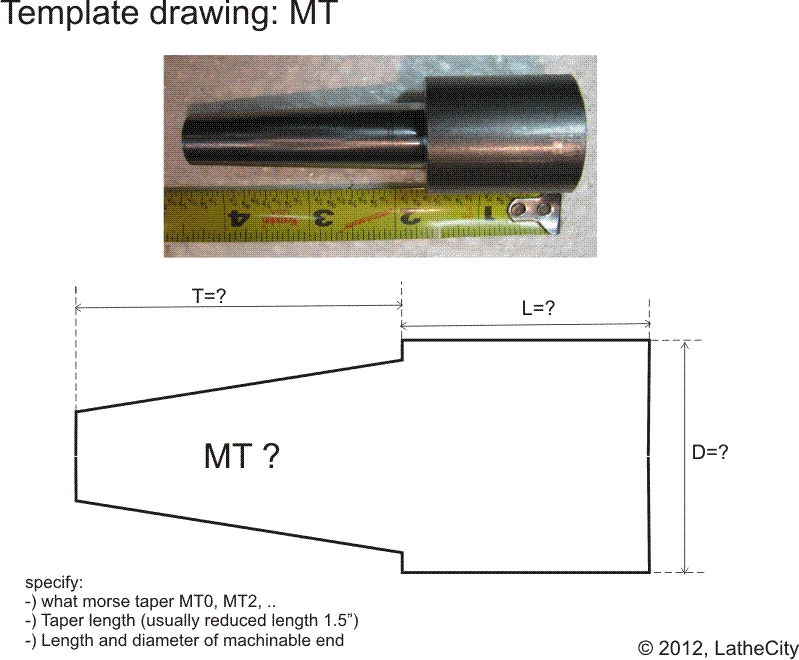

Template drawing [ MT ]

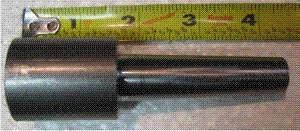

MT2 shorter

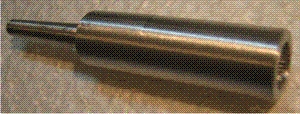

Morse taper to arbor combination

MT2 spindle

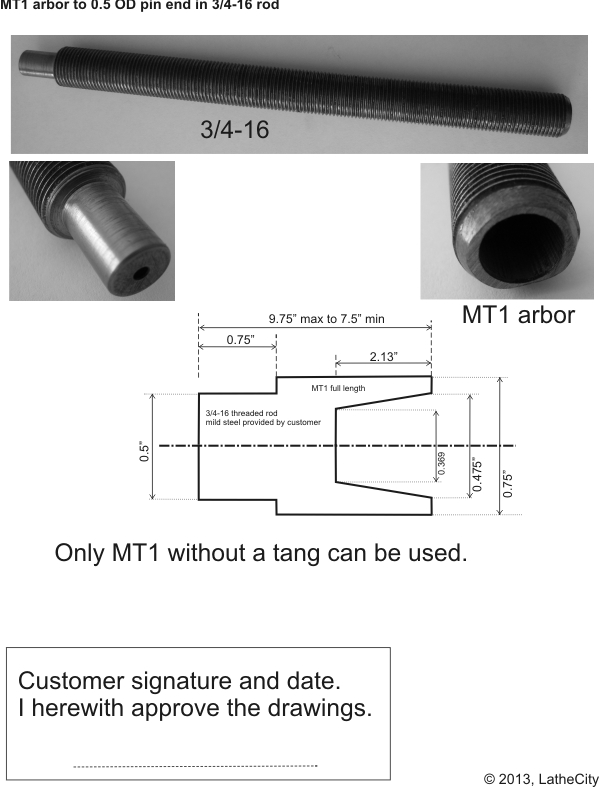

Threaded rod with MT1 arbor

A few drawings:

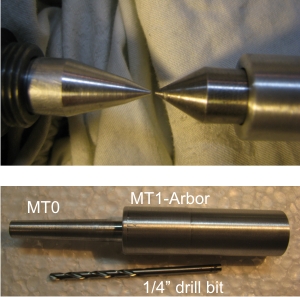

[ MT1-Arbor-To-MT0-Taper ] - Morse #1 arbor to Morse #0 taper
[ MT2 Blank ] - Morse #2 machinable end -- blanks
[ MT3 Blank ] - Morse #3 machinable end -- blanks
[ MT2-to-UNIMAT ] - Morse #2 taper to M12 threaded end (use UNIMAT accessories on China lathe)

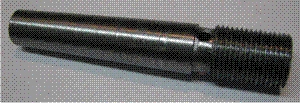

[ MT2-3/4-16 MT2-Sherline ] - Morse #2 taper to 3/4-16 bolt end (use Sherline accessories on China lathe)
[ MT1 arbor cut directly in a steel 3/4-16 threaded rod ] - Morse #1 arbor cut in 3/4-16 threaded rod - tailstock arbor (used on old wood lathe)
[ Brown and Sharpe #8 taper to MT2 arbor ] - brown and sharpe #8 taper to Morse #2 arbor (used on old metal lathe)
[ Drill chuck adapter ] - 5/8-11 bushings to 1/2-20 bolt end (used for a drill)
[ Adapter for grinder ] - 1/4" bushings to 3/8-24 bolt end (connects grinder to Jacobs chuck)
[ Chuck adapter ] - 1/2-20 bushings to 3/4-16 bolt end, apparently used for Craftsman lathe, (we cannot guarantee that this works as a chuck adaper on a metal lathe)
[ Spindle for wood shapener/grinder ] - MT2 to 3/4-16 long end we also made B16 to 3/16-16
Pricing usually $20-$50/piece for adapters


We have made the most "obscure" stuff in the meanwhile, as long as it is safe ([ Business terms for custom designs ] ), however,
PLEASE, contact us via E-mail we don't have a secretary sitting at the phone.



High precision cross-slide for a China import lathe. No wobbeling anymore, no need to adjust gibs all the time. The version here has a DRO (from LittleMachineshop).

High precision cross-slide mounted on a benchtop SIEG lathe. This one is set to cut Morse taper.

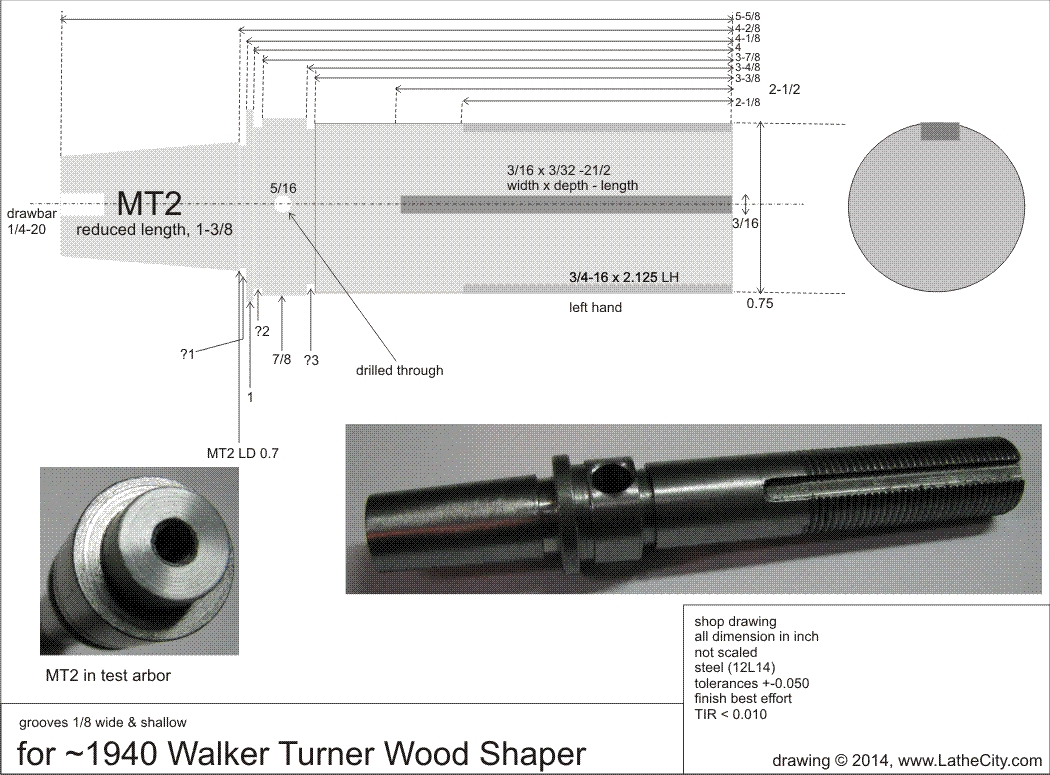

MT2 (B16) spindle for wood grinder [ drawing ] [ accessories for wood lathes ]




Large die holder for 1" die. We can make that size, but you have to pull the die by yourself.

Precision adjustable Tailstock for China lathe


Miniature Life Center for adjustable tailstock center

Stud (double ended screw) with unusual thread size combination


We made various lathe spindles. [ link ]

May be used as chuck adapter, here 1/2-20 bushings to 3/4-16 external
Template [ HexAdapter ]

Morse #1 (MT1) Tailstock for Sherline lathe, full length ANSI MT1 (made to order)

MT3 with tang and keyway


Template drawings. If you find a part which is close to what you need, then the fastest way getting this rolling is to use one of the template drawings.
E-mail template name and dimensions. [ Contact ]

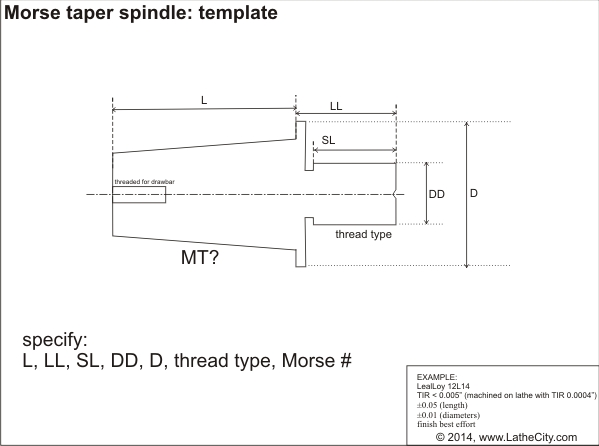

[ Morse taper ] [ HexAdapter ] [ Round adapter ] [ Morse Taper spindle ]... more is coming [ Home ]
